ASME IX Weld Training Kit– 6” Sch.160 Unlimited (With Backing Ring) A106 B
All-In-One Weld Training Kit
This All-In-One Weld Training Kit is designed for welders practicing pipe welding in the 6G position. Perfect for classroom, shop, or personal skill-building, it supports hands-on technique practice and familiarization with ASME IX-style joint configurations. Ideal for contractors, training programs, and individual welders looking to develop confidence and skill.
Kit Includes:

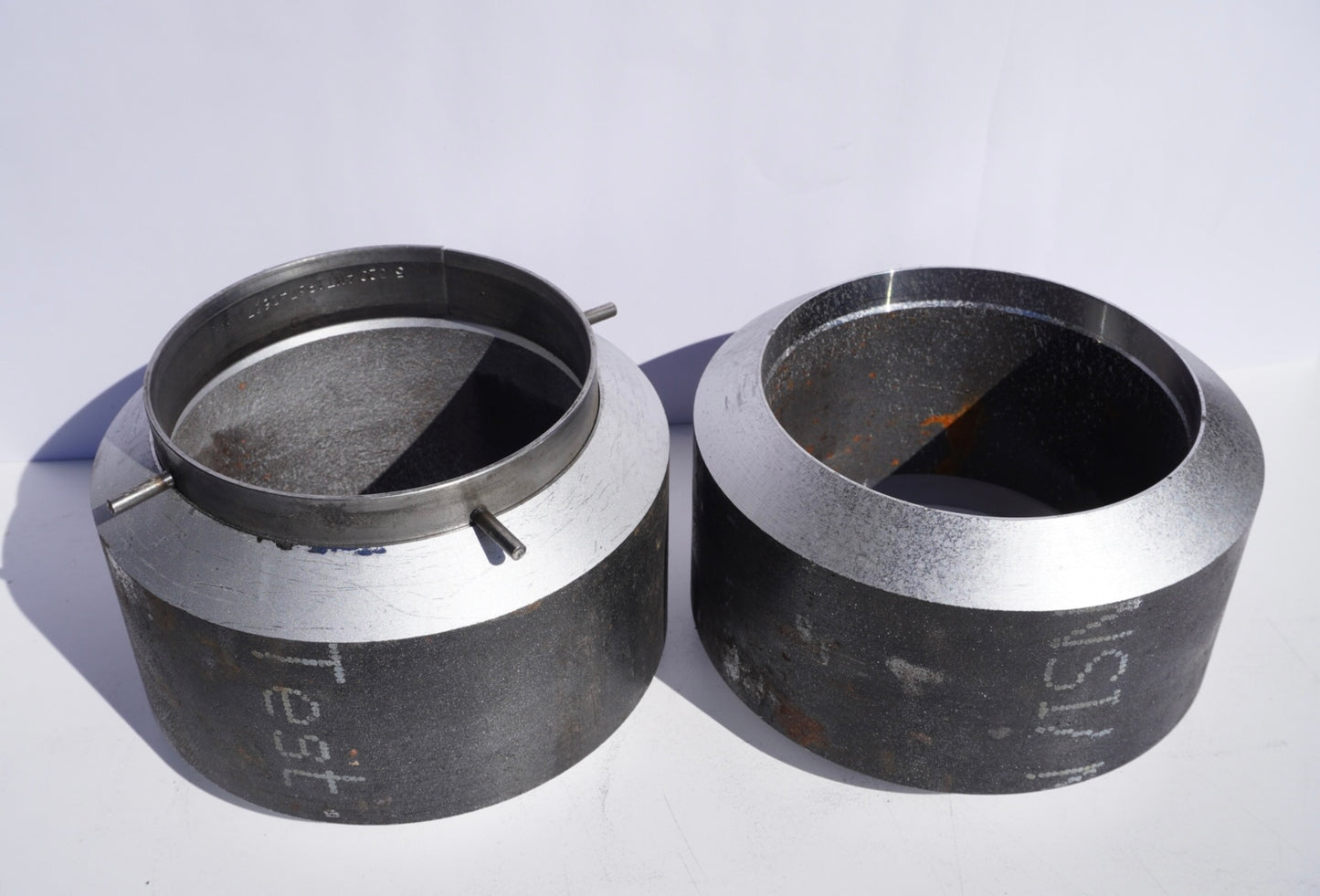

(4) Pipe Coupons – A106 B
(3) Backing Ring – A109
Nominal Size: 6” Schedule 160
Outside Diameter (OD): 6.625”
Wall Thickness (WT): 0.719”
Length: 4”
Bevel Prep: 37.5
Supplemental Materials:
-
Practice Guide: Step-by-step instructions for proper setup and hands-on welding practice. Includes reference for welding positions, joint fit-up, and visual profile guidance.
-
Material Documentation: Mill Test Report (MTR) for material traceability and reference
Note: This kit is intended for educational and skill-building purposes only. It does not provide certification, evaluation, or testing services.
